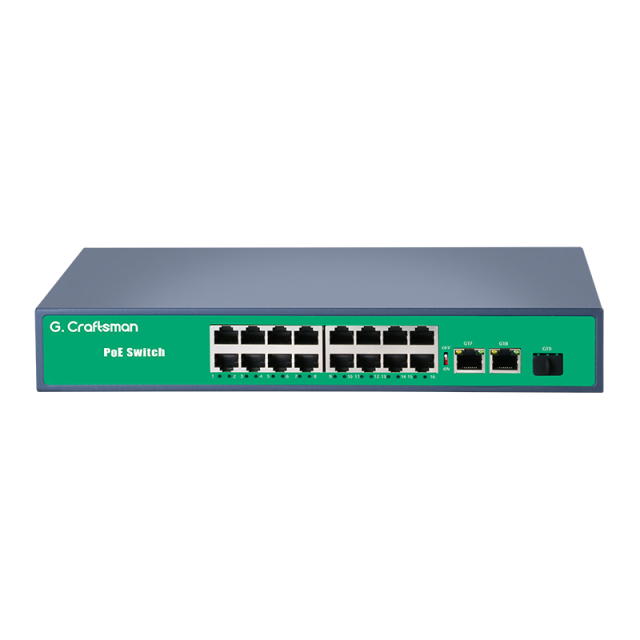

GC-Q1621A
GC-Q1621A
High Quality IP POE Switch
Up Link Ports: 2*1000Mbps UP Link port And 1SFP*1000Mbps UP Link port
POE Ports: 16 PCS 10/100mbps POE Ports
High Quality Metal Housing
POE Ports
:
16CH
GET A QUOTE
facebook
line
twitter
whatsapp
pinterest
tumblr
linkedin
Infrared
Specification
Download
Model No.
GC-Q1621A
POE Switch
POE Port
1 to 16 support IEEE802.3AF/AT Standard
Output Power
15.4W/30W IEEE802.3AF/AT
Power Pin
Both 1/2+ , 3/6- and 4/5+7/8-
Whole Power
<250W (52V 4.8A)
POE Protocol
IEEE 802.3AF/ IEEE802.3AT
POE Type
End-Span
Network Standard
IEEE 802.3 , IEEE802.3U , 802.3X , 802.3AF/AT
Network Medium
10/100BASE-TX:5 class and above non shielded twisted pair
Switch Capability
12.8Gbps
Forwarding Mode
Store and forward
Forwarding Rate
100BASE-TX: 14800PPS/PART
1000BASE-TX: 14800PPS/PART
MAC Address
MAC Address table 16K
LED Indicator
Each port occupled 1 LINK/ACT. 100Mbps,
POE Status Indicator, Whole power indicator
Working Environment
Working Temperature: -10°C ~55°C
Weight
1.78kg
Size
295*180*45(L*W*H)MM
